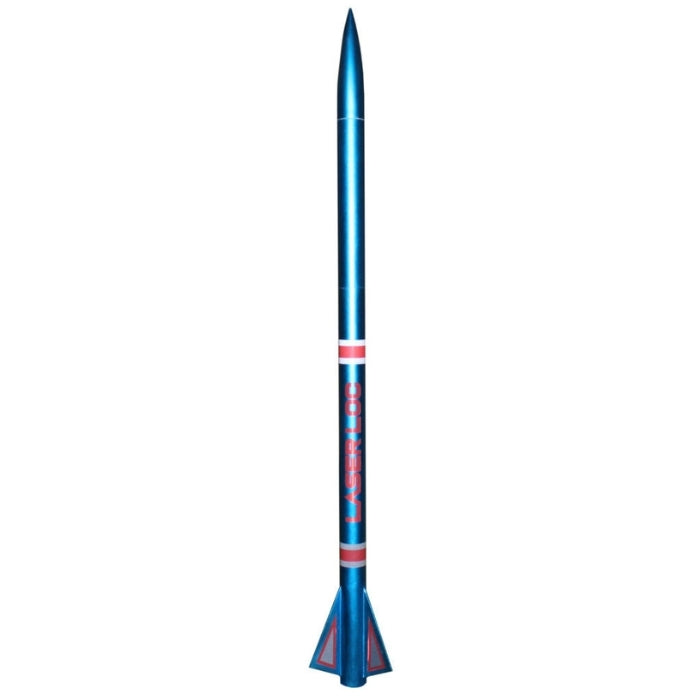

LOC Precision 2.2" Dia LaserLoc 223

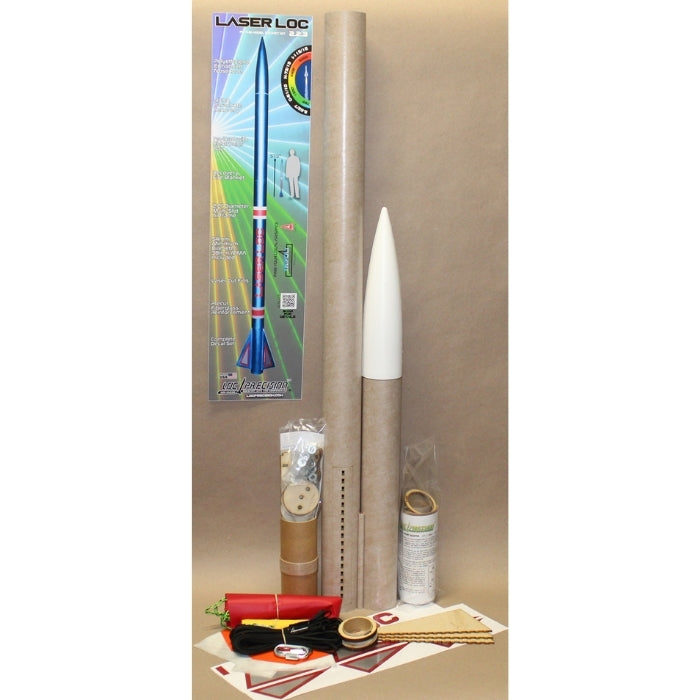

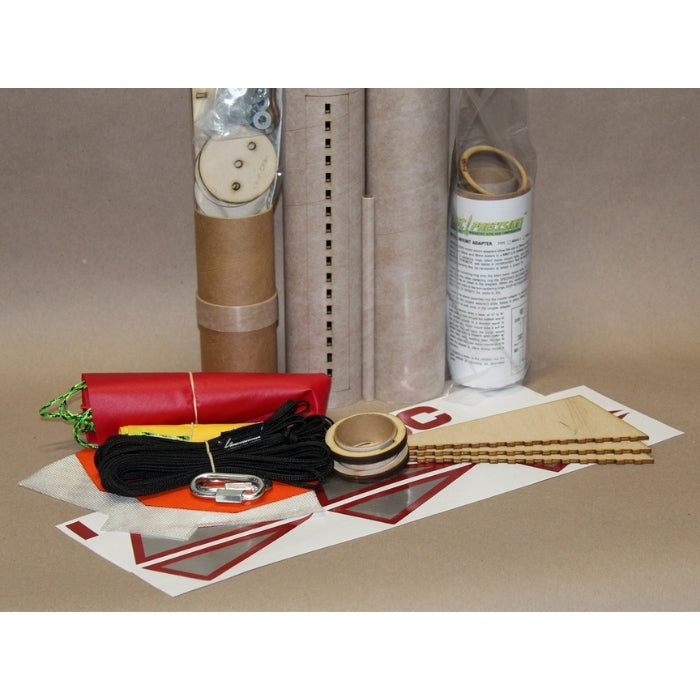

Celebrating 35 years of LOC – we bring back an old favorite! The LaserLOC series was one of the first production minimum diameter MID-HIGH POWER kits available to the public. Keeping the tradition going we have a few modern day tweaks that will put your skills to the test. A gentle laser etch around the slots allow for easier glassine removal. Multi-slot airframe allow the fins to click into the booster. Precut 4oz fiberglass cloth can be easily epoxied from fin-airframe-fin. This reinforcement will give your LaserLOC the strength for today’s higher impulse motors. Fiberglass should be applied with a long cure epoxy for best results. If you have never glassed anything before, here’s your chance! 1/4″ Launch lugs included. Fly away rail guides are another alternative. Full dual deployment ready with electronics bay and recovery included. Go ahead, drag race your fiberglass friends!!!

Strong enough for supersonic flights. Light enough on your wallet and to fly an F motor!!!

Finishing

Using a high build primer apply 2-3 coats. sand with 400 until spirals are filled. Paint as desired or follow below.

Createx Paint.  Follow manufacturers recommendations for applications

To achieve OEM color(s) the following paint was used and their respective ratios

6002                       Sealer Black
4258                       Gloss Black
4004                       Quick Silver. 1 lite coat, 2 moderate coats (do not over coat!)
4030/4657           3:1 Balancing Clear and Caribe Blue (until desired density)

lightly sand with 1000 grit to knock down any overspray before applying decals.  Clear as desired after decal application.

DESCRIPTION

LaserLOC223 Instructions

LaserLOC223 Rocksim

Complexity: Expert
Full Dual Deployment Ready
Diameter: 2.2″
Height: 58.5
Weight: 28 oz.
Motor Mount: 54mm minimum diameter - MMA-4 38mm included
Parachute Size: 28″ Ripstop Nylon with 15" Drogue
Shock Cord Type: 2x TN-316-15 15' 3/16″ Tubular Nylon with sewn loops

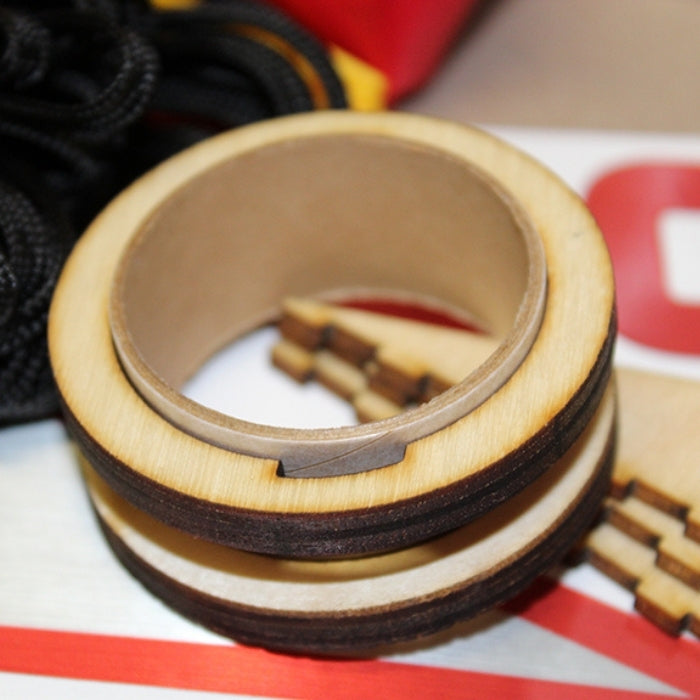

Shock Cord Mount: Snuffer Tube - 38mm motor tube + 2 centering rings
Fin Thickness: 1/8″
Ring Thickness: Minimum Diameter
Starter Recovery Blankets x2
Full Decals
Instructions: Yes
